ANS FUSES

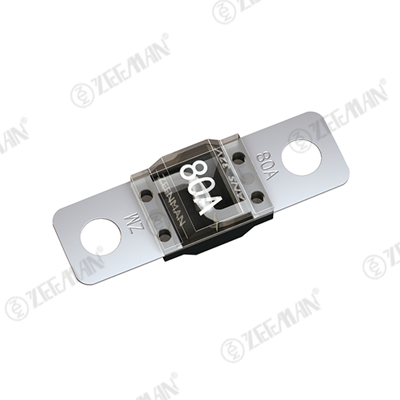

BOLT-ON FUSES
Product Description

Slow Blow

Voltage Rating : DC58V or less

Interrupting Rating: 2000A @58VDC

Operating Temperature Range: -40℃ to +125℃

Complies with ISO 8820-5 / GB/T31465.5

Materials :
1. Copper Alloy with Tin Plated
2. Plastic

※ Characteristics of fuses according to use conditions may change.

Purchase :
Product Introduction

Time-Current Characteristics

Test Current Opening Time
30A~125A 150A~175A
Min. Max. Min. Max.
75% --- --- 100 hrs ---
100% 100 hrs --- --- ---
110% 4 hrs --- --- ---
150% 90 s 3600 s --- ---
200% 3 s 100 s 1 s 15 s
300% 0.3 s 3 s --- ---
350% --- --- 0.3 s 5 s
500% 0.1 s 1 s --- ---
600% --- --- 0.1 s 1 s

Fuse Catalogue

Item No. Ampere
ANS 30 30 A
ANS 40 40 A
ANS 50 50 A
ANS 60 60 A
ANS 70 70 A
ANS 80 80 A
ANS 100 100 A
ANS 125 125 A
ANS 150 150 A
ANS 175 175 A
