ATN FUSES

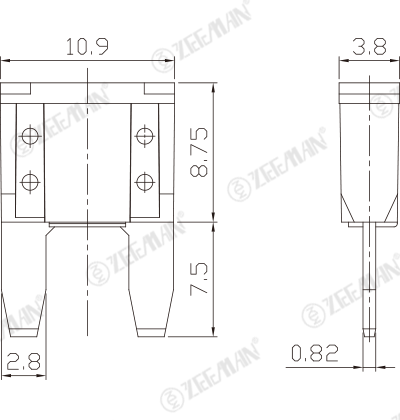

MINI PLUG-IN FUSES (MINI BLADE FUSES)
Product Description

Fast Acting

Voltage Rating : DC58V or less

Interrupting Rating: 1000A @58VDC

Operating Temperature Range: -40℃ to +125℃

Complies with SAE J2077 / JASO D612 / ISO 8820-3 / GB/T31465.3

Materials :
1. Zinc Alloy
2. Plastic

※ Characteristics of fuses according to use conditions may change.

Purchase :
Product Introduction

Time-Current Characteristics

Test Current Opening Time
Min. Max.
110% 100 hrs ---
135% 0.75 s 600 s
160% 0.25 s 50 s
200% 0.15 s 5 s
350% 0.04 s 0.5 s
600% 0.02 s 0.1 s

Fuse Catalogue

Item No. Ampere Color
ATN 2 2 A Gray
ATN 3 3 A Violet
ATN 4 4 A Pink
ATN 5 5 A Tan
ATN 7.5 7.5 A Brown
ATN 10 10 A Red
ATN 15 15 A Blue
ATN 20 20 A Yellow
ATN 25 25 A White
ATN 30 30 A Green
ATN 35 35 A Dark green
